How to install Prosody with Tiki as its identity provider

Prosody is a lightweight and modular XMPP server.

This guide describes how to configure Prosody so that Tiki acts as its identity provider for:

• Registered Tiki users
• Persistent anonymous website visitors
• Password and temporary-token authentication
• Community group chats
• Personalized direct support
• Tiki group-to-XMPP room mapping
• MUC room creation and affiliation synchronization

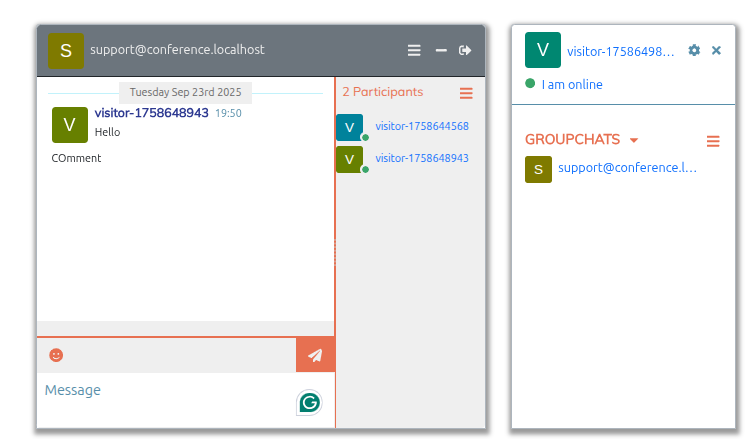

• Browser chat through Converse.js

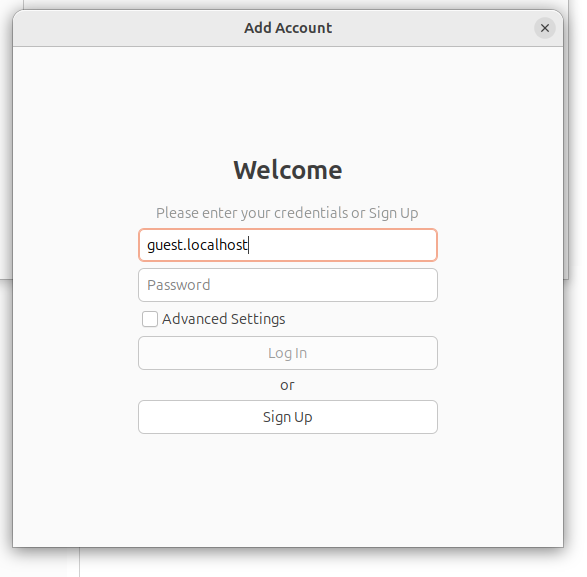

• Native XMPP clients such as Gajim and Monal
• Mobile push notifications through XEP-0357

The reference deployment described here uses:

• Prosody 0.12
• Lua 5.4
• Apache with PHP-FPM
• Tiki with persistent guest XMPP identities
• Converse.js
• Let's Encrypt certificates
• firewalld
• Monal or another XEP-0357-compatible mobile client

1. Functional overview

The intended user scenarios are:

• Alice, a website visitor: Tiki creates a persistent guest XMPP identity in her browser. She can return later with the same identity and conversation history.
• Bob, a registered user: Tiki authenticates him to Prosody and may associate him with the Registered users room.
• Charlie, a translator: membership in the Translators Tiki group gives him access to the corresponding XMPP room.
• Dan, an external XMPP user: he may use an external JID when federation, transport and room permissions allow it.
• Eve, a support agent: she can answer visitors through Converse.js, Gajim, Monal or another XMPP client.
• An anonymous visitor choosing community: the visitor joins the configured community room.
• An anonymous visitor choosing private support: the visitor opens a direct conversation with the configured support JID.

Presence is aggregated across XMPP resources. A support agent connected through Gajim, Monal or Converse.js may therefore appear online even when one of the other clients is closed.

2. Deployment status

3. Production architecture

The recommended architecture uses four logical roles:

The Tiki website and registered-user XMPP VirtualHost may share the same hostname in a compact deployment. The guest VirtualHost and MUC component must still use distinct XMPP domains.

Prosody exposes:

Port 5280 must not be publicly reachable.

Where possible, bind unencrypted HTTP to loopback or protect it with the firewall.

4. Preparation

Confirm that:

• Tiki is installed at https://tiki.example.org.
• Tiki manages its users, groups, permissions and passwords.
• The required Tiki XMPP implementation is present.
• Apache and PHP-FPM work correctly.
• Root or sudo access is available.
• DNS records can be changed.
• A real Tiki administrator or support account exists.
• Ports 5222, 5269 when required and 5281 can be opened.
• The system clock and timezone are correct.
• Outbound DNS and XMPP S2S connections are allowed.

LDAP, Shibboleth, Active Directory and other external authentication systems require additional testing.

5. DNS configuration

Create A and/or AAAA records for:

• tiki.example.org
• xmpp.example.org
• guest.example.org
• conference.example.org

For native clients:

_xmpp-client._tcp.xmpp.example.org. 3600 IN SRV 0 5 5222 xmpp.example.org.

For federation or external push-gateway communication:

_xmpp-server._tcp.xmpp.example.org. 3600 IN SRV 0 5 5269 xmpp.example.org.

Verify:

dig A tiki.example.org
dig A xmpp.example.org
dig A guest.example.org
dig A conference.example.org

dig SRV _xmpp-client._tcp.xmpp.example.org
dig SRV _xmpp-server._tcp.xmpp.example.org

All enabled XMPP hosts must resolve correctly.

6. Install Prosody

On Debian or Ubuntu:

sudo apt update

sudo apt install -y \
  prosody \
  prosody-modules \
  lua-sec \
  certbot \
  curl

Verify:

sudo prosodyctl about
sudo prosodyctl check config
sudo systemctl enable prosody

This guide targets Prosody 0.12 with Lua 5.4.

Prosody 13 includes mod_cloud_notify natively. Before upgrading, test:

• mod_auth_http
• Tiki authentication endpoints
• Persistent guests
• Custom presence modules
• MAM
• Push notifications
• Converse.js
• Native clients

Use a currently supported Prosody maintenance release whenever possible.

7. Install required Prosody modules

The deployment requires:

• mod_auth_http
• mod_guest_presence_autoapprove
• mod_support_presence

The Debian prosody-modules package supplies mod_cloud_notify for Prosody 0.12.

First locate the modules:

find /usr/lib/prosody /usr/local/lib/prosody \
  \( -name "mod_auth_http.lua" \
     -o -name "mod_cloud_notify.lua" \
     -o -name "mod_guest_presence_autoapprove.lua" \
     -o -name "mod_support_presence.lua" \) \
  -type f 2>/dev/null

Site-specific modules may be installed in:

/usr/local/lib/prosody/modules

Configure:

plugin_paths = {
    "/usr/local/lib/prosody/modules";
}

Production deployments must:

• Pin reviewed module revisions.
• Record checksums in deployment automation.
• Avoid downloading an unreviewed moving tip revision automatically.
• Test module compatibility after every Prosody update.
• Install modules with root ownership and mode 0644.

8. Obtain TLS certificates

The certificate must cover:

• xmpp.example.org
• guest.example.org
• conference.example.org

Example:

sudo certbot certonly \
  --webroot \
  -w /var/www/tiki \
  --cert-name tiki-xmpp-prosody \
  -d xmpp.example.org \
  -d guest.example.org \
  -d conference.example.org

The Apache VirtualHost serving the ACME challenge must accept all names.

Example:

ServerName tiki.example.org
ServerAlias xmpp.example.org
ServerAlias guest.example.org
ServerAlias conference.example.org

Validate:

sudo apache2ctl configtest
sudo systemctl reload apache2

sudo openssl x509 \
  -in /etc/letsencrypt/live/tiki-xmpp-prosody/fullchain.pem \
  -noout \
  -dates \
  -ext subjectAltName

Every Prosody host must appear in the certificate SAN list.

9. Import certificates into Prosody

Import the certificate:

sudo prosodyctl --root cert import \
  /etc/letsencrypt/live/tiki-xmpp-prosody

Verify:

sudo ls -l /etc/prosody/certs
sudo prosodyctl check certs

A single SAN certificate may be stored under the primary XMPP hostname while covering the guest and conference domains.

Private keys must remain readable only by root and Prosody.

10. Automatic certificate renewal

Create:

/etc/letsencrypt/renewal-hooks/deploy/reload-prosody.sh

Content:

#!/bin/sh
set -eu

/usr/bin/prosodyctl --root cert import
/etc/letsencrypt/live/tiki-xmpp-prosody

/usr/bin/systemctl reload prosody
|| /usr/bin/systemctl restart prosody

Set permissions:

sudo chmod 755 /etc/letsencrypt/renewal-hooks/deploy/reload-prosody.sh

Test renewal:

sudo certbot renew
--cert-name tiki-xmpp-prosody
--dry-run

Adapt the certificate name when necessary.

Some Certbot versions support run-deploy-hooks, but not all versions do. A plain dry-run does not verify that deployment hooks are executed.

After renewal, verify the certificate actually served by Prosody on port 5222.

11. Shared HTTP authentication secret

Generate a secret:

sudo sh -c \
  'openssl rand -base64 48 | tr -d "/=+\n" | cut -c1-40 > /etc/prosody/xmpp_http_secret'

sudo chown root:prosody \
  /etc/prosody/xmpp_http_secret

sudo chmod 640 \
  /etc/prosody/xmpp_http_secret

The same value must be configured in:

• The registered-user Prosody VirtualHost
• The persistent-guest Prosody VirtualHost
• The Tiki xmpp_shared_secret preference

Example:

http_auth_credentials =
    "prosody:REPLACE_WITH_THE_SHARED_SECRET"

Do not add a separate http_auth_user when http_auth_credentials already contains the API username and secret.

Protect /etc/prosody/prosody.cfg.lua if it contains the secret directly. A protected, deployment-specific included file may also be used for secrets.

Never place the secret in version control or public documentation.

12. Persistent guest table

The persistent guest endpoint requires:

CREATE TABLE IF NOT EXISTS `tiki_xmpp_guest_credentials` (
  `username` varchar(64) NOT NULL,
  `password_hash` varchar(255) NOT NULL,
  `created` int(11) NOT NULL,
  `last_seen` int(11) NOT NULL,
  PRIMARY KEY (`username`)
) ENGINE=InnoDB
  DEFAULT CHARSET=utf8mb4
  COLLATE=utf8mb4_general_ci;

Apply schema changes through the normal Tiki installer or upgrade mechanism.

Verify:

SHOW CREATE TABLE tiki_xmpp_guest_credentials;

Guest passwords must be stored with password_hash() and verified with password_verify(). Never store them in plaintext.

Define a retention policy for obsolete guest credentials according to the site's privacy requirements.

13. Tiki authentication endpoints

Tiki requires:

Prosody uses:

• /user_exists
• /check_password

The endpoints must:

• Require HTTP Basic Authentication.
• Accept the API username prosody.
• Verify xmpp_shared_secret.
• Reject an empty shared secret.
• Return plain-text true or false.
• Return HTTP 403 for invalid API authentication.
• Never expose supplied passwords in application logs.
• Use constant-time secret comparison where available.
• Accept password-bearing requests through POST in the recommended implementation.
• Retain GET compatibility only when required by the deployed mod_auth_http version.

The registered endpoint checks:

• A temporary Tiki XMPP token.
• The current Tiki password when password fallback is intentionally enabled.

The guest endpoint accepts usernames matching:

guest-[20 lowercase hexadecimal characters]

Guest passwords contain:

48 lowercase hexadecimal characters

The first valid guest /check_password request creates the hashed guest record. Later requests use password_verify().

The guest /user_exists method may return true for a syntactically valid new identity before its first password check.

14. PHP-FPM Basic Auth handling

Apache and PHP-FPM may expose the Prosody API credentials as normal website credentials.

Without endpoint-specific handling, Tiki may redirect the request to:

tiki-login.php?challenge=1

Each Prosody endpoint must capture the Authorization header before loading Tiki:

$prosodyAuthorization = $_SERVER['HTTP_AUTHORIZATION']
    ?? $_SERVER['Authorization']
    ?? $_SERVER['REDIRECT_HTTP_AUTHORIZATION']
    ?? '';

define('TIKI_SKIP_HTTP_BASIC_AUTH', true);

unset(
    $_SERVER['PHP_AUTH_USER'],
    $_SERVER['PHP_AUTH_PW'],
    $_SERVER['AUTH_TYPE'],
    $_SERVER['HTTP_AUTHORIZATION'],
    $_SERVER['Authorization'],
    $_SERVER['REDIRECT_HTTP_AUTHORIZATION']
);

require_once __DIR__ . '/tiki-setup.php';

The endpoint must validate the saved $prosodyAuthorization value separately.

The Tiki bootstrap must respect TIKI_SKIP_HTTP_BASIC_AUTH when:

• Copying REDIRECT_HTTP_AUTHORIZATION
• Reading apache_request_headers()
• Performing normal website HTTP Basic Authentication

This behavior must be restricted to the Prosody endpoints.

After changing authentication code:

cd /var/www/tiki
php console.php cache:clear
sudo systemctl reload php8.2-fpm

Use the correct PHP-FPM service name for the deployment.

15. Apache Authorization forwarding

First test whether the Authorization header reaches PHP. Do not add forwarding directives unnecessarily.

When required:

SetEnvIf Authorization "(.*)" HTTP_AUTHORIZATION=$1
CGIPassAuth On

<Directory /var/www/tiki>
    Options -Indexes +IncludesNOEXEC +SymLinksIfOwnerMatch
    Require all granted

    SetEnvIf Authorization "(.*)" HTTP_AUTHORIZATION=$1
    CGIPassAuth On
</Directory>

Validate:

sudo apache2ctl configtest
sudo systemctl reload apache2

Configure Apache logging so that password-bearing query parameters are not recorded.

16. Complete Prosody configuration

Edit:

/etc/prosody/prosody.cfg.lua

Reference configuration:

plugin_paths = {
    "/usr/local/lib/prosody/modules";
}

admins = {
    "admin@xmpp.example.org";
}

modules_enabled = {
    "disco";
    "roster";
    "saslauth";
    "tls";

    "blocklist";
    "bookmarks";
    "carbons";
    "dialback";
    "limits";
    "pep";
    "private";
    "smacks";
    "vcard4";
    "vcard_legacy";

    "csi_simple";
    "ping";
    "time";
    "uptime";
    "version";
    "mam";
    "lastactivity";

    "admin_adhoc";
    "admin_shell";

    "bosh";
    "websocket";

    "support_presence";
    "cloud_notify";
}

pidfile = "/run/prosody/prosody.pid";

s2s_secure_auth = true
s2s_require_encryption = true

archive_expires_after = "never"

limits = {
    c2s = {
        rate = "10kb/s";
    };
    s2sin = {
        rate = "30kb/s";
    };
}

log = {
    info = "/var/log/prosody/prosody.log";
    error = "/var/log/prosody/prosody.err";
    { levels = { "error" }; to = "syslog"; };
}

interfaces = { "0.0.0.0"; }
http_interfaces = { "0.0.0.0"; }
https_interfaces = { "0.0.0.0"; }
c2s_interfaces = { "0.0.0.0"; }
s2s_interfaces = { "0.0.0.0"; }

http_ports = { 5280; }
https_ports = { 5281; }

consider_websocket_secure = true

https_ssl = {
    key = "/etc/prosody/certs/xmpp.example.org.key";
    certificate = "/etc/prosody/certs/xmpp.example.org.crt";
}

VirtualHost "xmpp.example.org"
    ssl = {
        key = "/etc/prosody/certs/xmpp.example.org.key";
        certificate = "/etc/prosody/certs/xmpp.example.org.crt";
    }

    authentication = "http"

    http_auth_url =
        "https://tiki.example.org/tiki-xmpp-auth.php"

    http_auth_credentials =
        "prosody:REPLACE_WITH_THE_SHARED_SECRET"

    c2s_require_encryption = true
    allow_unencrypted_plain_auth = false

    sasl_mech_list = {
        "PLAIN";
    }

    disco_items = {
        { "conference.example.org"; };
    }

    support_jid =
        "admin@xmpp.example.org"

VirtualHost "guest.example.org"
    ssl = {
        key = "/etc/prosody/certs/xmpp.example.org.key";
        certificate = "/etc/prosody/certs/xmpp.example.org.crt";
    }

    authentication = "http"

    http_auth_url =
        "https://tiki.example.org/tiki-xmpp-guest-auth.php"

    http_auth_credentials =
        "prosody:REPLACE_WITH_THE_SHARED_SECRET"

    c2s_require_encryption = true
    allow_unencrypted_plain_auth = false

    sasl_mech_list = {
        "PLAIN";
    }

    allow_registration = false

    disco_items = {
        { "conference.example.org"; };
    }

    modules_enabled = {
        "guest_presence_autoapprove";
    }

    presence_requester_jid =
        "admin@xmpp.example.org"

Component "conference.example.org" "muc"
    ssl = {
        key = "/etc/prosody/certs/xmpp.example.org.key";
        certificate = "/etc/prosody/certs/xmpp.example.org.crt";
    }

    restrict_room_creation = false

    modules_enabled = {
        "muc_mam";
    }

    muc_room_default_persistent = true
    muc_room_default_public = true
    muc_room_default_members_only = false
    muc_room_default_allow_anonymous = true

    muc_room_default_history_length = 20
    muc_max_history_messages = 100
    muc_tombstones = true

Include "conf.d/*.cfg.lua"

The history settings have different purposes:

• archive_expires_after = "never" keeps MAM archives indefinitely.
• muc_room_default_history_length = 20 limits the initial history delivered when joining a room.
• muc_max_history_messages = 100 limits the room's immediate in-memory history behavior.

An unlimited MAM archive has privacy and storage implications. Production sites should define a retention policy suitable for their users.

Do not leave an unused default localhost VirtualHost enabled.

Validate:

sudo prosodyctl check config
sudo prosodyctl check certs
sudo systemctl restart prosody
sudo systemctl status prosody --no-pager

When adding a module for the first time, restart Prosody or explicitly load the module. A configuration reload alone may not load a newly enabled module.

17. Support presence modules

mod_support_presence and mod_guest_presence_autoapprove support the private help-desk workflow.

The registered-user VirtualHost defines:

support_jid = "admin@xmpp.example.org"

The guest VirtualHost enables:

modules_enabled = {
    "guest_presence_autoapprove";
}

presence_requester_jid =
    "admin@xmpp.example.org"

Expected behavior:

• Guests can obtain the configured support account's presence when permitted.
• The support status may reflect any connected resource.
• Gajim, Monal and Converse.js resources are treated as sessions of the same bare JID.
• One unavailable resource must not hide another resource that remains connected.
• Subscription acknowledgements must not be interpreted as online presence.
• Fresh direct-message activity may temporarily confirm that the support account is active.
• Archived messages must not incorrectly mark support as online.

The displayed Last seen value may use XEP-0012 and locally observed activity.

Document this behavior in the site's privacy policy if user activity information is exposed publicly.

18. Mobile push notifications

Mobile push uses XEP-0357 through mod_cloud_notify.

For Prosody 0.12, install the Debian prosody-modules package or a reviewed compatible community module.

Verify:

find /usr/lib/prosody /usr/local/lib/prosody \
  -path "*mod_cloud_notify*" \
  -type f 2>/dev/null

Required modules:

• cloud_notify
• smacks
• mam
• carbons

Enable:

modules_enabled = {
    "smacks";
    "mam";
    "carbons";
    "cloud_notify";
}

By default, do not expose message bodies or sender identities to push gateways:

push_notification_with_body = false
push_notification_with_sender = false
push_max_devices = 5
push_max_hibernation_timeout = 259200

Validate:

sudo prosodyctl check config
sudo systemctl restart prosody

Reconnect the mobile client completely.

A successful registration appears as:

Push notifications enabled for user@xmpp.example.org/ResourceName

The mobile application supplies its own push gateway. Prosody must be able to reach it through encrypted XMPP server-to-server communication.

For Monal, the gateway hostname is operated by the Monal project and must not be hard-coded into the Prosody configuration.

A successful registration proves that XEP-0357 was discovered and accepted. Complete validation also requires:

1. Close or suspend the mobile application.
2. Send a message from another account.
3. Confirm that the device receives a notification.
4. Reopen the client and confirm that MAM retrieves the message.

Idle S2S connections may close normally and reconnect when needed.

19. Configure firewalld

Check:

systemctl is-active firewalld
firewall-cmd --state
firewall-cmd --list-ports

Open native client and browser transport ports:

sudo firewall-cmd --permanent --add-port=5222/tcp
sudo firewall-cmd --permanent --add-port=5281/tcp

Open S2S when federation or external push gateways require it:

sudo firewall-cmd --permanent --add-port=5269/tcp

Reload:

sudo firewall-cmd --reload

Do not expose:

5280/tcp

Verify:

ss -lnt | grep -E \
  ':(5222|5269|5280|5281)[[:space:]]'

A listening socket does not prove public exposure. Confirm the firewall and test from an external network.

20. Configure Tiki

Open:

Administration → XMPP

Configure values equivalent to:

The support account must:

• Be a real Tiki user.
• Authenticate through Tiki HTTP Auth.
• Be included in the Prosody admins list when administrative synchronization is required.
• Use a secure password.
• Be reachable through the configured support JID.

Do not use prosodyctl register to create a second password for an HTTP-authenticated VirtualHost.

Clear caches after configuration changes:

cd /var/www/tiki
php console.php cache:clear
sudo systemctl reload php8.2-fpm

21. Configure Converse.js

Recommended extra settings:

{
  "discover_connection_methods": false,
  "keepalive": true,
  "persistent_store": "localStorage"
}

The dedicated WebSocket preference should contain:

wss://xmpp.example.org:5281/xmpp-websocket

It may also be supplied explicitly:

{
  "websocket_url": "wss://xmpp.example.org:5281/xmpp-websocket",
  "discover_connection_methods": false,
  "keepalive": true,
  "persistent_store": "localStorage"
}

Use localStorage because persistent guest identities must survive navigation and browser restarts.

Debugging is temporary only:

{
  "debug": true
}

Disable debug mode in production to avoid excessive console output and performance overhead.

For large private conversations:

• Load only a reasonable initial page of recent messages.
• Do not request all MAM pages automatically.
• Keep older messages available through incremental history loading.
• Avoid rendering off-screen messages unnecessarily.

These optimizations must not delete archived messages.

22. Persistent guests

Visitors do not use Prosody SASL ANONYMOUS.

Tiki generates:

Username:
guest-<20 lowercase hexadecimal characters>

Password:
<48 lowercase hexadecimal characters>

Example:

guest-0123456789abcdef0123@guest.example.org

Converse.js connects using:

• authentication: login
• auto_login: true
• The generated guest JID
• The generated guest password

The browser stores the identity under:

tiki-xmpp-guest-identity

On subsequent page loads:

• A valid stored identity is reused.
• A missing or malformed identity is replaced.
• Normal Converse.js cleanup must not remove the Tiki guest identity.
• Prosody validates credentials through tiki-xmpp-guest-auth.php.

Clearing browser storage intentionally creates a new anonymous identity.

23. Community and private support behavior

When both a community room and private support JID are configured, an anonymous visitor is asked:

How would you like to chat?

Description:

Join the community conversation, or chat privately with a member of our support team.

Choices:

Join the community group
Chat privately with a team member

The private conversation header uses:

Support team

Community choice:

• Connects with the persistent guest identity.
• Joins the configured community room.
• Allows conversation with room members and other visitors.

Private choice:

• Connects with the persistent guest identity.
• Opens a direct chat with the configured support JID.
• Does not force the visitor to join a support room.
• Preserves access to the community option through the normal launcher.

A deployment may configure only one destination. In that case, the available destination may open directly.

24. Group-to-room mapping

Example:

{
  "Registered": "registered@conference.example.org",
  "Translators": "translators@conference.example.org"
}

With a by-groups strategy:

• Registered users receive the registered room.
• Each mapped Tiki group adds its corresponding room.
• Administrators may receive community or support rooms.
• Missing rooms may be created during synchronization.
• The effective JID receives an appropriate affiliation.
• Obsolete affiliations may be removed.

Administrative synchronization requires a valid administrator JID and credential.

Test:

• Group addition
• Group removal
• JID changes
• Room creation
• Affiliation addition
• Affiliation removal
• Authentication failures
• Existing room permissions

25. External XMPP identities

An external JID may be used only when:

• It is syntactically valid.
• The user explicitly selects it.
• Compatible BOSH or WebSocket transport is available.
• Federation is configured.
• The external domain can communicate with the MUC component.
• Room permissions allow the external identity.

Otherwise Tiki uses:

username@xmpp.example.org

External identity support requires site-specific testing.

26. Add XMPP chat to a Tiki page

Enable the XMPP wiki plugin.

Embedded community chat:

{xmpp room="Community" visibility="anonymous" view_mode="embedded" width="100%" height="600px"}

Floating chat:

{xmpp room="Community" visibility="anonymous" view_mode="overlayed"}

Fullscreen presentation:

{xmpp room="Community" visibility="anonymous" view_mode="fullscreen"}

Other examples:

{xmpp room="Support"}
{xmpp room="Registered"}

Group-restricted example:

{GROUP(groups="Translators")}
{xmpp room="Translators"}
{GROUP}

Complete room JID:

{xmpp room="community@conference.example.org"}

Embedded mode is meaningful only on a page containing the XMPP plugin. Site-wide overlay and fullscreen behavior depends on Converse.js being loaded globally.

27. Test registered-user authentication

Without API authentication:

curl -sS \
  -o /dev/null \
  -w "%{http_code}\n" \
  "https://tiki.example.org/tiki-xmpp-auth.php/user_exists?user=admin"

Expected:

403

With API authentication:

SECRET="$(sudo cat /etc/prosody/xmpp_http_secret)"

curl --fail-with-body \
  -u "prosody:${SECRET}" \
  "https://tiki.example.org/tiki-xmpp-auth.php/user_exists?user=admin"

unset SECRET

Expected for an existing user:

true

Do not put a real Tiki password directly in a shell command or query-string URL.

28. Test persistent guest authentication

Use a disposable guest identity.

For a POST-capable endpoint:

GUEST_USER="guest-0123456789abcdef0123"
GUEST_PASS="0123456789abcdef0123456789abcdef0123456789abcdef"
SECRET="$(sudo cat /etc/prosody/xmpp_http_secret)"

curl --fail-with-body \
  -u "prosody:${SECRET}" \
  --data-urlencode "user=${GUEST_USER}" \
  --data-urlencode "pass=${GUEST_PASS}" \
  "https://tiki.example.org/tiki-xmpp-guest-auth.php/check_password"

unset SECRET GUEST_PASS GUEST_USER

Expected:

true

Repeat with the same password. It must still return true.

A wrong password must return false.

Delete the disposable test row afterward.

If the deployed mod_auth_http requires GET, perform compatibility testing in a controlled environment and ensure the pass parameter is redacted from all logs.

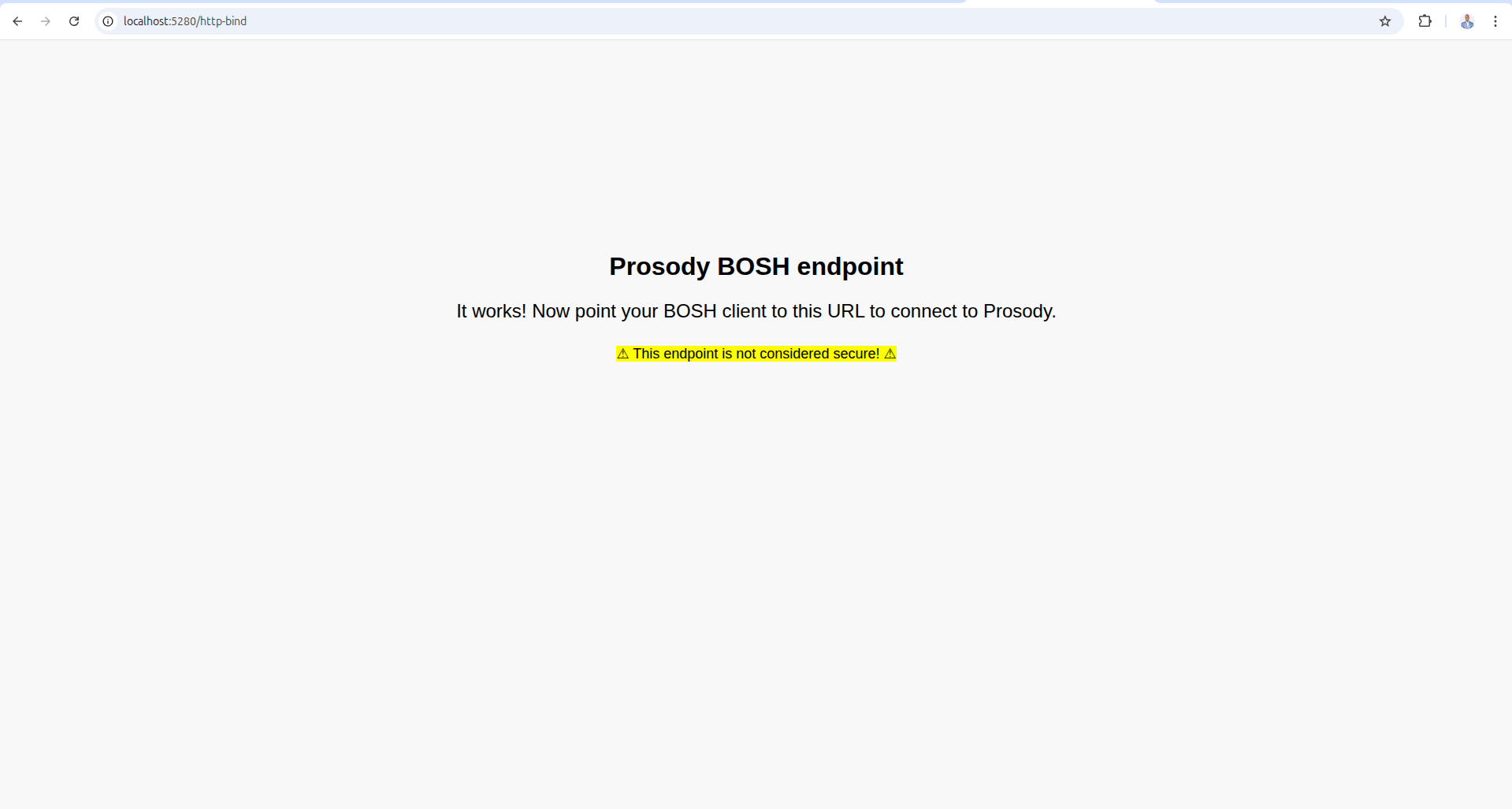

29. Test BOSH

curl -vk \
  https://xmpp.example.org:5281/http-bind

Expected:

• HTTP 200
• The Prosody BOSH endpoint response

30. Test WebSocket correctly

A normal HTTP request is not a complete WebSocket test.

curl \
  --http1.1 \
  --max-time 2 \
  -vk \
  -H "Connection: Upgrade" \
  -H "Upgrade: websocket" \
  -H "Sec-WebSocket-Protocol: xmpp" \
  -H "Sec-WebSocket-Version: 13" \
  -H "Sec-WebSocket-Key: dGhlIHNhbXBsZSBub25jZQ==" \
  https://xmpp.example.org:5281/xmpp-websocket

Expected:

HTTP/1.1 101 Switching Protocols
Sec-WebSocket-Protocol: xmpp

A 501 response may mean that the test omitted the XMPP WebSocket subprotocol.

31. Configure native clients

Example Gajim or Monal account:

With correct SRV records, a manual server override may not be necessary.

To join a room:

Room:
community

Server:
conference.example.org

Room JID:

community@conference.example.org

For mobile clients, allow notifications at the operating-system level and reconnect after enabling cloud_notify.

32. Logs and diagnostics

Prosody:

sudo systemctl status prosody --no-pager
sudo journalctl -u prosody -f
sudo tail -f /var/log/prosody/prosody.log
sudo tail -f /var/log/prosody/prosody.err
sudo prosodyctl check config
sudo prosodyctl check certs

Apache:

sudo tail -f /var/log/apache2/tiki.example.org_access_log
sudo tail -f /var/log/apache2/tiki.example.org_error_log

PHP-FPM:

sudo systemctl status php8.2-fpm --no-pager
sudo journalctl -u php8.2-fpm -f

Listeners:

ss -lnt | grep -E \
  ':(5222|5269|5280|5281)[[:space:]]'

Do not enable verbose Converse.js or Prosody debugging permanently in production.

33. Troubleshooting

33.1 Redirect to tiki-login.php?challenge=1

Cause:

Tiki consumed Prosody's Basic Auth credentials as website-login credentials.

Fix:

• Capture Authorization before Tiki initialization.
• Define TIKI_SKIP_HTTP_BASIC_AUTH.
• Prevent Tiki from consuming or reconstructing the header.
• Clear caches.
• Reload PHP-FPM.

33.2 Prosody cannot read its private key

Import certificates:

sudo prosodyctl --root cert import \
  /etc/letsencrypt/live/tiki-xmpp-prosody

Reference files under /etc/prosody/certs.

33.3 Prosody serves an expired certificate

Compare the source and served certificates:

sudo openssl x509
-in /etc/letsencrypt/live/tiki-xmpp-prosody/fullchain.pem
-noout -dates

echo | openssl s_client
-connect xmpp.example.org:5222
-starttls xmpp
-servername xmpp.example.org
2>/dev/null
| openssl x509 -noout -dates -subject -issuer -ext subjectAltName

If automatic renewal did not occur, verify that the Certbot timer is not masked or disabled:

sudo systemctl unmask certbot.timer
sudo systemctl enable --now certbot.timer
sudo systemctl status certbot.timer

Reimport and restart Prosody when necessary.

Verify the certificate actually presented by Prosody, including its expiration date, hostname and certificate chain.

33.4 WebSocket returns 501

Include:

Sec-WebSocket-Protocol: xmpp

33.5 Guest identity changes on every page

Confirm that:

• persistent_store is localStorage.
• tiki-xmpp-guest-identity exists.
• Cleanup code does not remove it.
• Username and password formats remain valid.
• Browser privacy settings are not clearing site storage.

33.6 Administrator synchronization fails

Confirm that:

• The administrator JID identifies a real Tiki user.
• The JID is in the Prosody admins list.
• The password or token is current.
• Authentication uses tiki-xmpp-auth.php.
• The MUC domain is correct.

33.7 Private support does not join a support room

This is expected.

The private-support flow opens a direct chat with the configured support JID. It does not automatically join a support room.

33.8 Client reports missing XEP-0357 support

Confirm that:

• cloud_notify is installed and loaded.
• smacks, mam and carbons are enabled.
• Prosody was restarted after enabling the module.
• The mobile client was fully closed and reconnected.
• Prosody logs contain Push notifications enabled for ....
• Port 5269 and outbound S2S connectivity are available when required.

A warning cached before the module was loaded may disappear only after reconnecting the account.

33.9 Support status is incorrect

Confirm that:

• The configured support JID is the correct bare JID.
• support_presence is loaded.
• guest_presence_autoapprove is loaded on the guest VirtualHost.
• The visitor is authorized to receive support presence.
• Every connected resource is considered.
• Unavailable resources are removed independently.
• Archived messages are not treated as current activity.

33.10 Large private conversations open slowly

Confirm that:

• The initial local history page is bounded.
• MAM is not fetching every page automatically.
• Older messages load incrementally.
• Converse.js debug mode is disabled.
• The browser cache contains the current JavaScript build.
• DOM observers are scoped and disconnected when no longer required.

34. Final production checklist

Before declaring the deployment ready, confirm:

• The required Tiki XMPP implementation is present.
• Prosody configuration validation passes.
• Certificate validation passes for every host.
• Certificates contain all required SAN names.
• Prosody, Apache, PHP-FPM and firewalld are active.
• Port 5280 is not publicly exposed.
• Port 5222 is reachable when native clients are supported.
• Port 5269 is reachable when federation or push gateways require S2S.
• Port 5281 is reachable for direct BOSH and WebSocket.
• The registered endpoint returns 403 without API authentication.
• The registered endpoint recognizes an existing user.
• The guest endpoint returns 403 without API authentication.
• First guest authentication creates a hashed record.
• Repeated guest authentication succeeds.
• A wrong guest password is rejected.
• Password parameters are absent from or redacted in access logs.
• BOSH responds correctly.
• WebSocket returns HTTP 101.
• Native SASL authentication succeeds through TLS.
• Converse.js uses localStorage.
• Community choice joins the configured room.
• Private choice opens the configured support conversation.
• The support status recognizes Gajim, Monal and Converse.js resources.
• One disconnected resource does not hide another connected resource.
• Group-to-room synchronization has been tested.
• cloud_notify is loaded.
• A mobile client registers its push gateway.
• A closed mobile client receives a real test notification.
• Converse.js debug mode is disabled in production.
• MAM retention matches the site's privacy policy.
• Shared secrets and private keys are not stored in public documentation or version control.
• The Certbot renewal timer or equivalent scheduler is enabled and active.
• Automatic certificate renewal has been tested successfully.
• The Certbot deployment hook imports renewed certificates.
• The renewed certificate actually served by Prosody has been verified.
• The served certificate matches the expected hostname and certificate chain.

At this point:

• Registered Tiki users authenticate to Prosody through HTTP Auth.
• Website visitors use persistent HTTP-authenticated guest identities.
• Visitors can choose between community discussion and private support.
• Converse.js connects through secure WebSocket or HTTPS BOSH.
• Native clients connect through STARTTLS.
• Support presence can reflect multiple XMPP clients.
• Tiki groups can map to MUC rooms.
• Mobile clients can receive XEP-0357 push notifications.
• Certificates are imported and refreshed automatically.
• Only required production ports are publicly exposed.
