History: How to install Openfire Meetings on ClearOS

Preview of version: 197

Openfire is a real time collaboration (RTC) server supporting XMPP (Jabber) and WebRTC.

Quick upgrade

2018-03-02 New versions Openfire 4.2.2 / app-openfire 1.2.5

How to install
yum --enablerepo=clearos-contribs-testing install app-openfire

How to upgrade
yum --enablerepo=clearos-contribs-testing upgrade openfire app-openfire

Quick install

Openfire can be installed with the following command on a ClearOS 7.2 box:

1)
yum --enablerepo=clearos-contribs-testing install app-openfire


2) Go to "System / Accounts / Users' in the menu to:
- Create some users (make sure the "Openfire User" is enabled in App policies for the user you create)

3) Go to "Server / Communication and Collaboration / Openfire' in the menu to:
- Click "Install and Initialize Built-in Directory" (Grab a coffee, this will take several minutes)
- Click "Configure security Certificates" (TODO: Document what happens when Lets encrypt is enabled : http://wikisuite.org/How-to-install-Let-s-Encrypt-SSL-certificates-on-ClearOS)
- Select the admin user
- Set the XMPP domain
- Set the Openfire hostname from one of the available SSL certificates on the system.

4) Follow the link and log in to Openfire

ClearOS integration includes:
- ClearOS Openfire app
- Openfire
- Plugins: Fastpath, Openfire meetings
- System database provisioning
- LDAP integration
- focus user (openfire-focus) for Openfire meetings
- Letsencrypt




Detailed Install

Assumptions

  • This guide assumes your ClearOS server will be the main server for your domain. Thus, your website (powered by Tiki) will be on the same server. E-mails could also be handled (with Roundcube on ClearOS) but are also easily handled by your domain name provider.

Information

To Install Openfire 4.x on ClearOS 7.x within the WikiSuite environment follow the next steps.

1.- Install a fresh ClearOS Server, be sure to run the latest Software updates to the core system

2.- Make sure the clearos-epel repository is enabled

3- Include in the installation of:

a. The Web Server

A

Configure domain name

How to set domain name on ClearOS

Please note that Openfire is not multi-tenant. So it is designed to handle just one domain name. Ref: OF-162

Install Openfire


1.-Login to your ClearOS via SSH using root

2.-Install the Openfire RPM

Type:

yum --enablerepo=clearos-contribs-testing install app-openfire


Go to "Server / Communication and Collaboration / Openfire' in the menu (https://yourserver.wikisuite.org:81/app/openfire):

2017 01 05 Openfire Clearos

Configure OpenLDAP


1.-Click "Install and Initialize Built-in Directory" (Grab a coffee, this will take several minutes)
1.-Initialize your OpenLDAP service through the Webconfig-Open LDAP Directory Server Module (https://yourserver.wikisuite.org:81/app/openldap_directory).

File not found.


2.-On the Directory Server Settings page set the server mode and Base Domain (https://yourserver.wikisuite.org:81/app/openldap_directory/settings/edit)

File not found.


3.-On the Directory Server Policies page set the Publish Policy and Accounts access according to your requirements (https://yourserver.wikisuite.org:81/app/openldap_directory/policies/edit)

File not found.


4.-Don't forget to create one or two users as they will be used in the Openfire configuration phase. Use: (https://yourserver.wikisuite.org:81/app/users/add)

F

Configure SSL certificates / Letsencrypt


Go to "Server / Communication and Collaboration / Openfire' in the menu (https://yourserver.wikisuite.org:81/app/openfire):

- Click "Configure security Certificates" to use a self-signed certificate.
- (TODO: Document what happens when Letsencrypt is enabled : http://wikisuite.org/How-to-install-Let-s-Encrypt-SSL-certificates-on-ClearOS)

Configure Firewall


The openfire app will take care of opening the following ports:

Port TCP/UDP Access Control Application Description
5222 TCP Public Openfire The standard port for clients to connect to the server.
5223 TCP Public Openfire Legacy SSL/TLS port for clients to connect to the server.
7443 TCP Public Openfire The port used for secured HTTP client connections.
9091 TCP Administrative Openfire The port used for secured (HTTPS) Admin Console access.


However, you will probably want to open more than those. ClearOS's Firewall should configured to block all ports, and open the following:

Port TCP/UDP Access Control Application Description
22 TPC Administrative SSH Terminal access
25 TCP Public OFMeet SMTP: For emails for Openfire Meeting Planner
80 TCP Public (generic) Web server (HTTP)
81 TCP Administrative ClearOS Webconfig
143 TCP Public OFMeet IMAP: For emails for Openfire Meeting Planner
443 TCP Public (generic) Web server (HTTPS)
587 TCP Public OFMeet SMTP For emails for Openfire Meeting Planner if you use Gmail
993 TCP Public OFMeet IMAPS For emails for Openfire Meeting Planner
4443 TCP Public OFMeet RTP over TCP for Jitsi Videobridge
5000 TCP Public OFMeet Media proxy for video conference
5222 TCP Public Openfire The standard port for clients to connect to the server. On this port plain-text connections are established, which, depending on configurable security settings, can (or must) be upgraded to encrypted connections.
5223 TCP Public Openfire The port used for clients to connect to the server using the old SSL/TLS method. Connections established on this port are established using a pre-encrypted connection. This type of connectivity is commonly referred to as the "old-style" or "legacy" method of establishing encrypted connections. Configuration details can be modified in the security settings.
5269 TCP Public Openfire The port used for remote servers to connect to this server. Connections established on this port are established using a pre-encrypted connection. This type of connectivity is commonly referred to as the "old-style" or "legacy" method of establishing encrypted connections. Configuration details can be modified in the security settings.
7070 TCP Public Openfire The port used for unsecured HTTP client connections.
7443 TCP Public Openfire The port used for secured HTTP client connections.
8843 (unknown) Public OFMeet WOOT realtime collaborative editing
9090 TCP Administrative Openfire The port used for unsecured (HTTP) Admin Console access.
9091 TCP Administrative Openfire The port used for secured (HTTPS) Admin Console access.
50000-60000 UDP Public OFMeet Media proxy for video conference


Notes:

  • Ports 7070 and 9090 are used for plain HTTP traffic. Each have a more secure HTTPS counterpart: 7443 and 9091 respectively. Consider disabling the HTTP ports, which could hurt interoperability and performance., but will increase security.
  • An earlier draft of this page listed ports 5229 and 5349 (for Openfire). There is no known application for these ports. Where they included by mistake?

Configure Openfire


WARNING: 2018-03-12: In openfire 4.2.2, plugins don't upgrade properly: apparently fixed in 4.2.3 (https://issues.igniterealtime.org/browse/OF-1464), which isn't released as of this writing

1.- Use a web browser to connect to the admin console. The default port for the web-based Initial setup admin console is 9090. Initial setup and administration can be done from a remote computer using LAN IP address instead or hostname if it is resolvable by the remote computer. i.e. (https://yourserver.wikisuite.org:9090). Source: http://www.igniterealtime.org/builds/openfire/docs/latest/documentation/install-guide.html

V1

Install and configure Openfire Plugins


The openfire clearos app will have already installed and done basic setup of the following plugins:

  • Openfire Meetings Plugin
  • Openfire Fastpath plugin

Configure Openfire Meetings Plugin

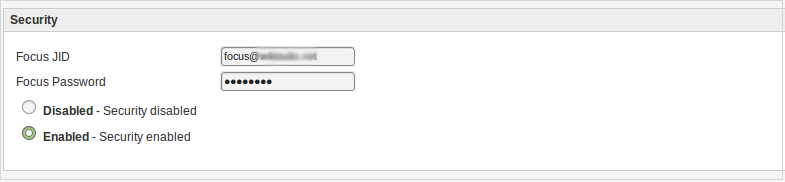

1.- For security, Openfire Meetings Plugin creates an user focus. You need to create this user focus in ClearOS (https://yourserver.wikisuite.org:81/app/users). Then , go back in Openfire Meeting plugin tab, click on Setting in left menu and Security section for change the password for same that a ClearOS User's Focus.
Openfire Meeting Security Focus User

Source: http://www.igniterealtime.org/projects/openfire/plugins/ofmeet/readme.html

Configure Openfire Fastpath plugin


1.- Once the plugin has been successfully installed, the Fastpath tab should be available, click on it to configure Workgroups (https://yourserver.wikisuite.org:9091/plugins/fastpath/workgroup-summary.jsp)

Aa4

Notes:

  • The snippet is provided on the Openfire Admin Console (Fastpath -> Workgroup Manager -> Workgroup Settings -> Text)

Install additional Openfire plugins

1.- Login to your Openfire Admin Console with a administrator user.

2.- Click on the Plugins Tab to manage Plugins

W

3.- Click on the available plugins link and scroll down to find the plugin you want

X

4.- Click on then ¨+¨ to add the plugin to the Openfire server

X1

Add more openfire admins


Currently, the openfire clearos app only allows adding one admin user. As of this writing (2017-03-14), it will even clobber all other admins except the newly selected one if you change it.

To add more admins, you need to go into the openfire admin interface, and in

Server / Server Manager / System Properties edit property "admin.authorizedJIDs". It takes a coma-separated list of fully qualified openfire users.


To add more admin users,

Configure Tiki, ConverseJS and OpenFire

To get a transparent authentication between ConverseJS and Openfire, we need
to configure Tiki and install the TikiToken plugin (https://github.com/fabiomontefuscolo/openfire-tikitoken/) in OpenFire.

1 - The Tiki Token plugin is now shipping as an optional plugin in Openfire 4.1.5 Just activate as you would for any Openfire plugin. (You may also find more recent snapshots at Download the latest tikitoken.jar at https://github.com/fabiomontefuscolo/openfire-tikitoken/releases)

2 - Go to server properties page at http://yourserver.wikisuite.org:9090/server-properties.jsp
and setup a new property with name org.tiki.tikitoken.baseUrl and property
value will be your tiki base url, let's suppose http://tiki.wikisuite.org.
003 Set Of Prop

3 - Configure Tiki to talk to OpenFire. Go to community page on admin panels (RTC page on Tiki 19+), select the XMPP tab,
and:

004 Set Tiki Xmpp

4 - Still on Tiki, go to "Admin Modules" panel (http://tiki.wikisuite.org/tiki-admin_modules.php);

5 - Click on "All modules" tab;

6 - On field Filter type xmpp;

7 - Drag the result to bottom of page, in the closest gray bordered box;
005 Place Xmmp Mod

8 - Just save the popup will appear;

9 - Refresh the page to see the box at the bottom of the page;

Additional configuration

Configure email

Going to https://yourserver.demo.wikisuite.org/webmail to access to Roundcube, then login with your username and password.
Login To Roundcube

In ClearOS

You can to set the options about to sending the emails

https://example.org:81/app/smtp
ClearOS   SMTP

You can to set the options about to getting the emails

https://example.org:81/app/imap
ClearOS   IMAP

In Openfire

Edit the email setting in a server manager tab like on an image:
https://example.org:9091/system-email.jsp
Openfire Email Settings
Edit the email listener in a Meeting tab like on an image:
https://example.org:9091/plugins/ofmeet/ofmeet-email-listener.jsp
Openfire Email Listener Setup

Adding admins


1.-There is no ClearOS group for the Openfire admins. Instead: Server -> Server Manager -> System Properties -> admin.authorizedJIDs

Edit server properties (https://yourserver.wikisuite.org:9091/server-properties.jsp)

Y1

2.- Find the admin.authorizedJIDs property, edit it and add comma separated full JIDs. In our specific case user at example.org. "Click on Save Property"

Y2

3.- Openfire needs a restart, Login to your ClearOS via SSH using root and type:

service openfire restart

Configure SSL

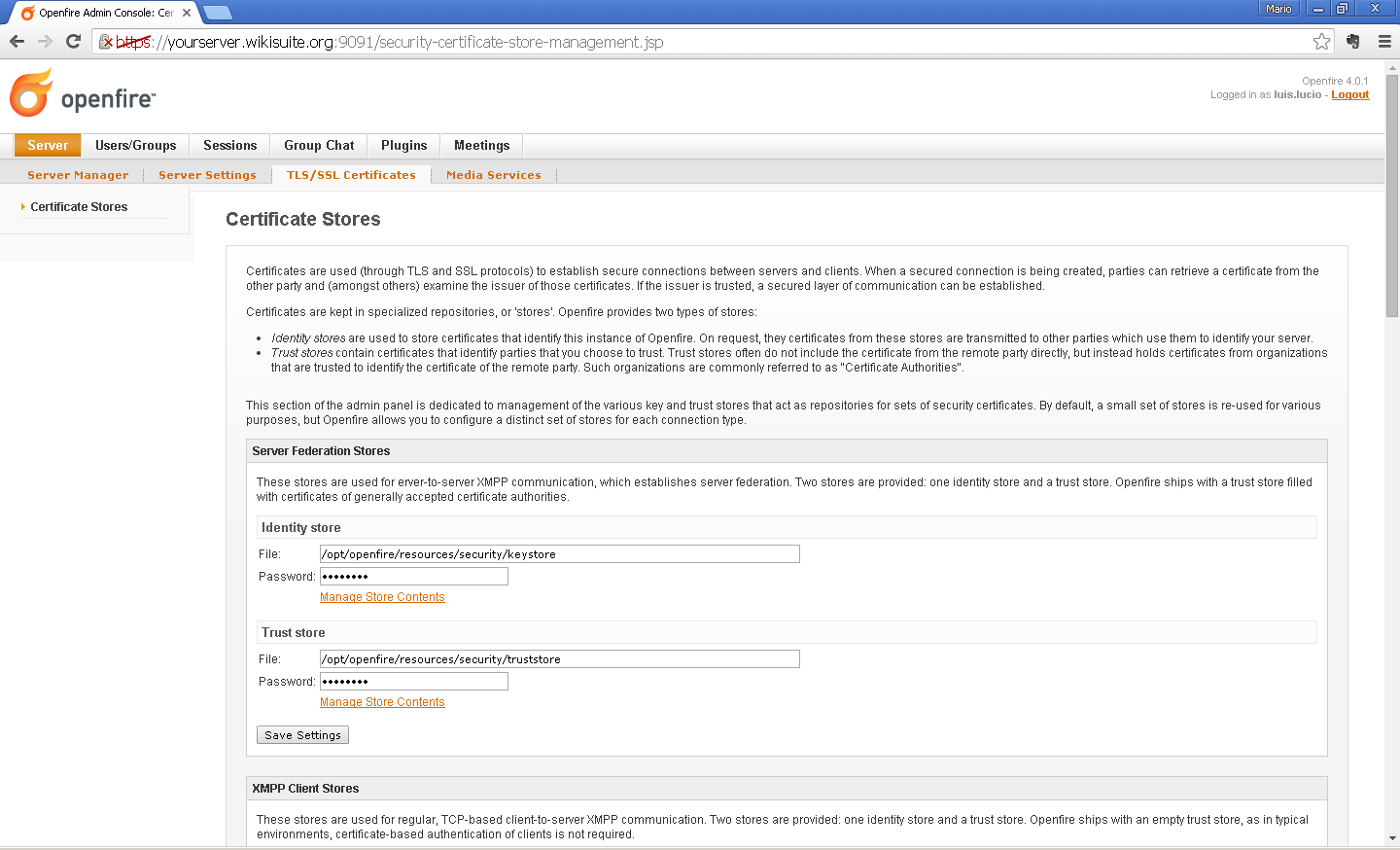

As of Openfire 3.2 certificate management can be performed from the Admin Console. (And in 4.0, code has been revamped)

Once the setup process is completed Openfire will create self-signed certificates for the assigned Openfire's domain. Most users should either get the created certificates signed by a Certificate Authority or replace the created certificates with your own certificates. Source: http://www.igniterealtime.org/builds/openfire/docs/latest/documentation/ssl-guide.html

Make sure you use at least 2048-bit key length


Z1

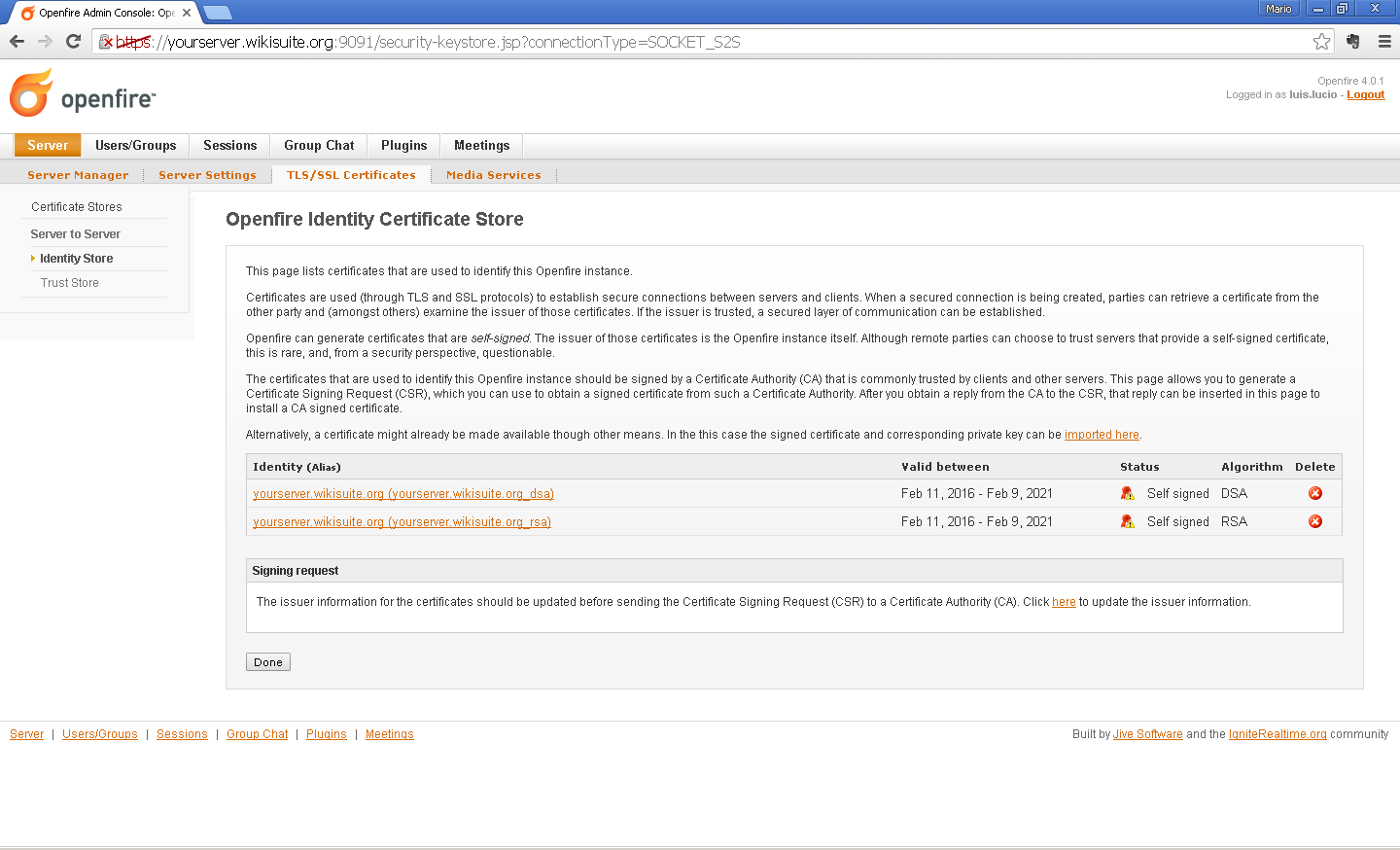

  • Manage the existing certificates in the Openfire Identity Certificate Store


Z2

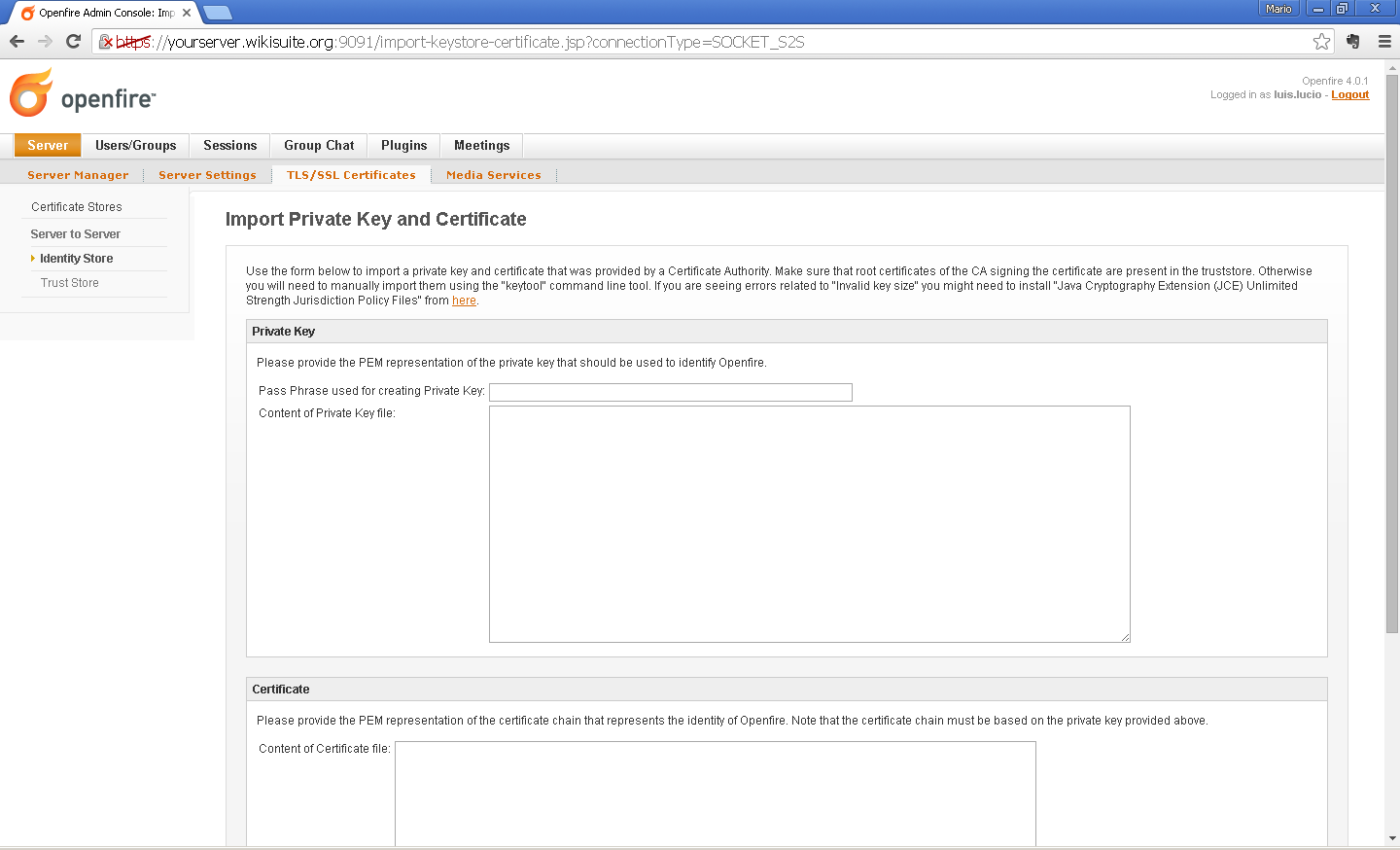

  • Import Private Key and Certificate


Z3

As ClearOS also manages SSL certificates, they can co-exist independently as their storage files are different and independent. i.e. Openfire generated certificates will only be used within Openfire applications.

Avoiding non-standard ports

In some contexts, (corporate environments, captive portals in Internet cafes, etc.), some ports can be blocked. Thus, if you want to get rid of port number, you can put the following apache configuration (Apache 2.4+ so you need ClearOS 7.x):

ProxyPass /ofmeet/ http://localhost:7070/ofmeet/
ProxyPassReverse /ofmeet/ http://localhost:7070/ofmeet/
ProxyPass /ofmeetws/ wss://localhost:7070/ofmeetws/
ProxyPassReverse /ofmeetws/ wss://localhost:7070/ofmeetws/

Team room

To create a private room

Go on "Group Chat" tab.
Openfire Create Groupchat

Then going to "create new room" on left menu.
Openfire Create New Room

Then fill out the appropriate fields (Minimum Room ID, Room Name and Description). Finish with click on save changes button.

For use the private room

  • Web access with CandyChat

Go on https://example.org:7443/ofmeet/candy.html
then login with your account access.

  • WebRTC access

With https://example.org:7443/ofmeet/ (from which you can pick a room)

  • XMPP client access

with Spark in a login session, click on "Action" tab then a "joint a chatroom" option. In a new pop up, double-click in a list on a right chatroom.
with Jitsi in a login session, click on "File" tab then a "joint a chatroom" option. In a new pop up, select a right account and write a chatroom name.

Remote Control of Keyboard and Mouse

This requires users install an app on their desktop (Windows / GNU/Linux / MacOSX) and to have the Openfire plugin for Chrome plugin.

How to use

  • You as the person who is actively sharing a screen can select the panel of a participant on the film strip. If video is NOT working, you will not get any video panels. If you do, then you can select any and then click on remote control icon. The person on the other end will be notified that they have control of your desktop
  • You as a participant can request for remote control of an active screenshare from the desktop owner by clicking on the remote control icon. The owner will receive a popup windows requesting an accept or decline. If request is accepted, then remote control will be given

STUN / TURN server

  • Todo later Marc: discuss with Dele (What / How to install and what ports to open)

Advanced configuration

Linking workaround

Specially when using any RedHat 7 based distribution, Java shiped in RPM has not all the required symbols. You must do this workaround.

yum install java-1.7.0-openjdk java-1.7.0-openjdk-devel
cd /opt/openfire
mv jre jre.1
ln -s /usr/lib/jvm/java/jre/ jre

Pade

https://github.com/igniterealtime/Pade


Server: example.org:7443
Domain: example.org

Todo

  • update to use Java 8 done
  • Document how to use with

Make sure these installation instructions provide great security

Souce code

Source Packages
https://github.com/WikiSuite/app-openfire http://koji.clearos.com/koji/packageinfo?packageID=303
https://github.com/WikiSuite/app-openfire-plugin http://koji.clearos.com/koji/packageinfo?packageID=311
https://github.com/WikiSuite/openfire http://koji.clearos.com/koji/packageinfo?packageID=302

Troubleshooting

Changing openfire configuration when you can't login to the system database


Openfire stores it's configuration in the database. On ClearOS, that is the system database.

Getting into the ClearOS system database can be a little confusing the first time. ClearOS typically runs two database servers. You will need the system database root password, and to connect to a non-default socket. Here is how:

cat /var/clearos/system_database/reports
mysql -u root openfire -p --socket /var/lib/system-mysql/mysql.sock


You can then edit the openfire configuration, which is stored in the ofProperty table. (SELECT * FROM `ofProperty`)

One change you are likely to want to make during debugging is to enable ldap debugging

INSERT INTO `openfire`.`ofProperty` (`name`, `propValue`, `encrypted`) VALUES ('log.debug.enabled', 'true', NULL);
exit
service openfire restart
tail -f /var/log/openfire/debug.log


Useful references:
* http://download.igniterealtime.org/openfire/docs/latest/documentation/ldap-guide.html" class="wiki wikinew text-danger tips">Openfire LDAP guide
* https://www.clearos.com/resources/documentation/clearos/content:en_us:kb_troubleshooting_re-initialize_openldap_directory" class="wiki wikinew text-danger tips">ClearOS: Re-initialize your LDAP directory

It used to work, but just lost access when I installed the Directory app.


The problem is most likely that your base domain changed.

OpenLdap on base ClearOs creates domains of the form:

dc=system,dc=lan

Unfortunately, if you install the clear os directory app AFTER openfire, your base domain is likely to change. It's going to be:
If "Base Domain" is your.domain.name,
your base DN will be:
dc=your,dc=domain,dc=name

Openfire will not update it's configuration automatically. You'll have to update the following ofProperty in openfire's database
* ldap.baseDN (as is)
* ldap.searchFilter (modify the value in the parenthesis as appropriate)

Testing OpenLDAP from the command line


This should work:

ldapsearch -x -h localhost -b 'dc=your,dc=domain,dc=name' 'uid=your_openfire_admin_user'

If the above does not return your user, logging into the openfire admin console will NOT work.

This may help diagnose:

ldapsearch -x -h localhost


Should list all users. If you don't see yours, something is really wrong with your ldap configuration.

alias

History

Advanced
Information Version
Marc Laporte 235
View
Marc Laporte 234
View
gary.cunningham-lee Minor text edits. 233
View
Marc Laporte 232
View
guus.der.kinderen Added Monitor plugin for MAM [Rollback by marc.laporte to version 228] 231
View
Marc Laporte Removing everywhere so no one copy-pastes them 230
View
Marc Laporte We are now official! 229
View
guus.der.kinderen Added Monitor plugin for MAM 228
View
Marc Laporte 227
View
guus.der.kinderen Add HTTP File Upload plugin installation instructions. 226
View
Marc Laporte 225
View
Marc Laporte 224
View
Marc Laporte 223
View
guus.der.kinderen Updated firewall config 222
View
Marc Laporte 221
View
Marc Laporte 220
View
Marc Laporte 219
View
Marc Laporte 218
View
Marc Laporte Yes! 217
View
Marc Laporte simpler 216
View
Benoit Grégoire Integrate most of Marc's comments 215
View
Marc Laporte 214
View
Marc Laporte 213
View
Marc Laporte 212
View
Marc Laporte 211
View
Marc Laporte use generic domains for docs 210
View
Marc Laporte live example not used 209
View
Marc Laporte 208
View
Marc Laporte 207
View
Marc Laporte Java 8 done. The other was an incomplete sentence 206
View
Marc Laporte syntax for external links 205
View
Marc Laporte typo 204
View
Marc Laporte typo 203
View
Marc Laporte 202
View
Marc Laporte minor cleanups 201
View
Marc Laporte URL broke in site revamp but I copied file 200
View
Marc Laporte 199
View
Marc Laporte 198
View
Benoit Grégoire Add a troubleshooting section 197
View
Marc Laporte 196
View
Marc Laporte typo 195
View
Benoit Grégoire 194
View
Benoit Grégoire 193
View
Benoit Grégoire Document adding more admins to openfire 192
View
Benoit Grégoire 191
View
Benoit Grégoire 190
View
Benoit Grégoire Warn about plugins not updating 189
View
Benoit Grégoire Reorg 188
View
Benoit Grégoire 187
View
Benoit Grégoire 186
View
